Duplex Steel in Marine and Petrochemical Applications: Advantages and Selection Guide

Introduction: Why Material Selection Matters in Harsh Environments

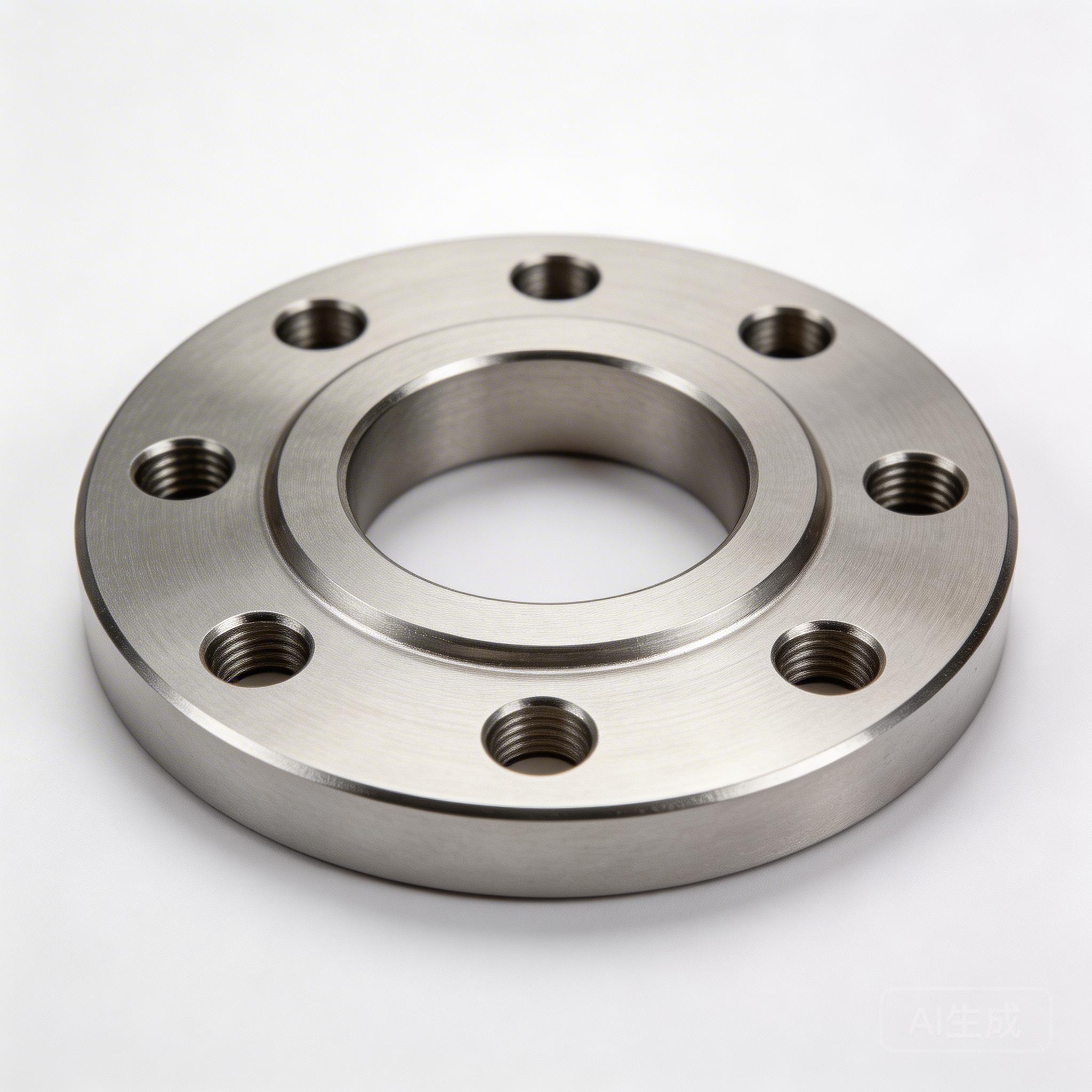

In the marine and petrochemical industries, equipment operates in some of the most challenging conditions on Earth. From corrosive seawater to high-pressure chemical processes, the materials used in flanges, pipes, and fittings can mean the difference between reliable operation and costly failures.

Duplex stainless steel has emerged as a preferred choice for these demanding applications, offering a unique combination of strength, corrosion resistance, and cost-effectiveness that makes it ideal for critical fluid system components.

What is Duplex Steel?

Duplex stainless steel is a two-phase microstructure consisting of approximately 50% austenite and 50% ferrite. This dual structure gives it the best characteristics of both austenitic and ferritic stainless steels.

Key Duplex Steel Grades

Standard Duplex (2205/S31803/F51):

• The most widely used duplex grade
• Excellent balance of properties
• Suitable for most marine and petrochemical applications

Super Duplex (2507/S32750/F53):

• Higher chromium, molybdenum, and nitrogen content
• Superior corrosion resistance
• Ideal for the most aggressive environments

Hyper Duplex (F55/S32760):

• Premium grade with maximum corrosion resistance
• For extreme operating conditions

7 Key Advantages of Duplex Steel in Marine and Petrochemical Applications

1. Exceptional Corrosion Resistance

Duplex steel offers outstanding resistance to:

• Pitting and crevice corrosion in chloride-rich seawater
• Stress corrosion cracking (SCC) that plagues austenitic steels in hot chloride environments
• Uniform corrosion from acids and chemicals commonly found in petrochemical processes
• Microbiologically influenced corrosion (MIC) in marine environments

2. Superior Strength

With nearly twice the yield strength of standard 316 stainless steel, duplex steel allows for:

• Thinner wall sections while maintaining pressure integrity
• Lighter-weight equipment
• Reduced material costs
• Easier installation and handling

3. Excellent Toughness and Ductility

Despite its high strength, duplex steel maintains good ductility:

• Reliable performance at sub-zero temperatures
• Resistance to brittle fracture
• Excellent impact resistance
• Suitable for cold climates and deep-water applications

4. Cost-Effective Solution

While duplex steel may have a higher initial cost than standard austenitic stainless steel, it delivers superior value:

• Longer service life reduces replacement costs
• Less maintenance required
• Thinner sections reduce overall material usage
• Lower lifecycle costs compared to multiple material replacements

5. Good Weldability

Modern duplex steels offer excellent weldability:

• Compatible with standard welding processes
• Maintains corrosion resistance in weld zones
• Proper procedure ensures duplex structure is preserved
• Zhejiang Jiaji Forging can provide pre-welded and ready-to-install components

6. High Pressure and Temperature Resistance

Ideal for petrochemical processes:

• Withstands high operating pressures
• Stable performance across temperature ranges
• Suitable for both upstream and downstream applications
• Meets ANSI, DIN, JIS, and other industry standards

7. Environmentally Sustainable

A more sustainable choice:

• Longer service life means less material waste
• Fully recyclable at end of life
• Reduces energy consumption from frequent replacements
• Supports green initiatives in the energy sector

Application Areas in Marine and Petrochemical Industries

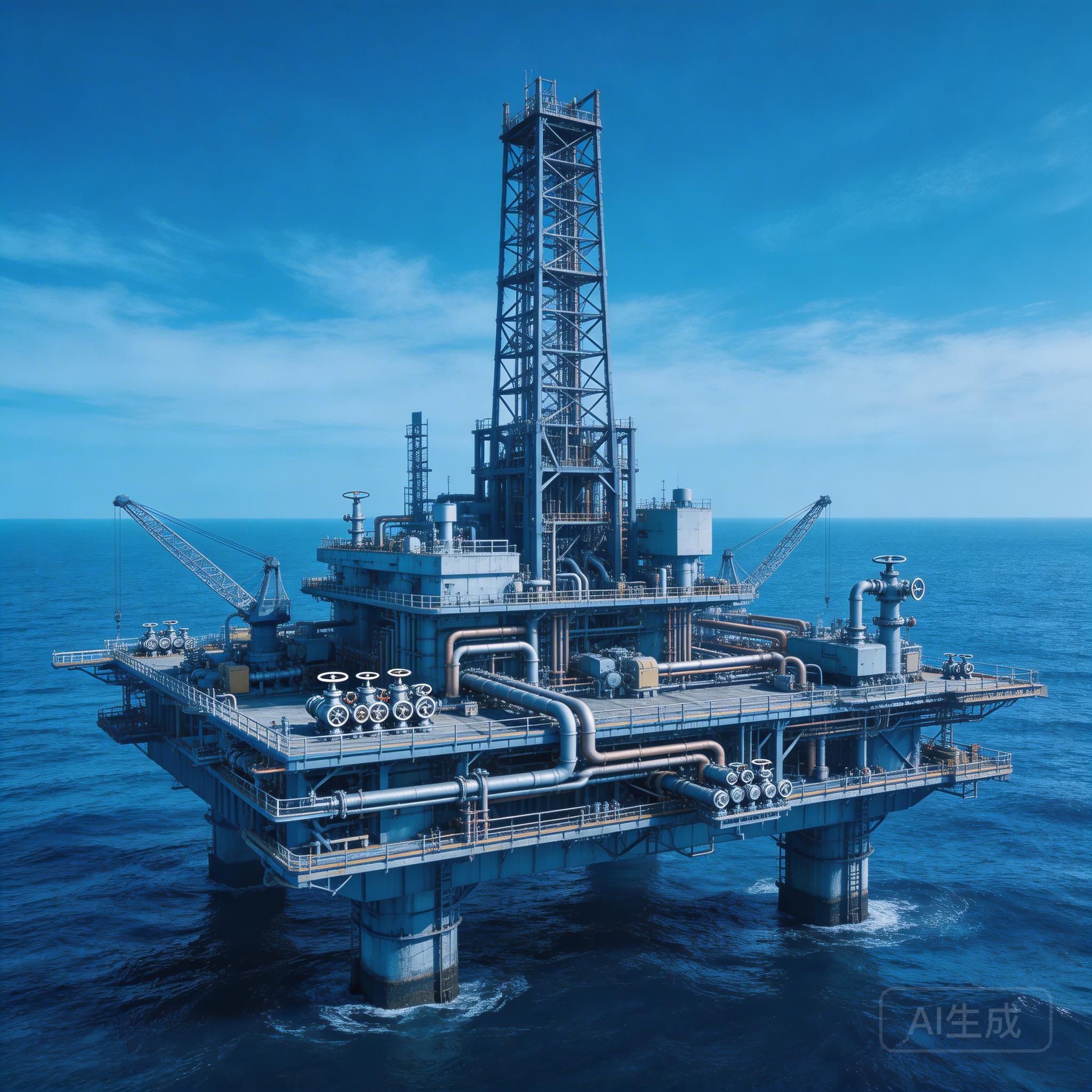

Offshore Oil and Gas

• Subsea equipment and manifolds
• Wellhead and christmas tree components
• Riser systems and jumpers
• Platform piping systems

Marine and Shipbuilding

• Seawater cooling systems
• Ballast water management systems
• Desalination plant components
• Shipboard piping and valves

Chemical Processing

• Reactors and pressure vessels
• Heat exchanger tubing and shells
• Piping for corrosive chemicals
• Pump and valve components

LNG and Cryogenic Applications

• LNG processing and transport
• Cryogenic storage systems
• Low-temperature piping
• Cold box equipment

How to Select the Right Duplex Steel Grade

Factors to Consider

1. Operating Environment

• Chloride content
• Temperature range
• pH levels
• Presence of other corrosive agents

2. Mechanical Requirements

• Pressure ratings
• Temperature cycling
• Structural loads
• Impact resistance needs

3. Regulatory Standards

• Industry specifications (ANSI, DIN, JIS, BS, GB, SH)
• Project-specific requirements
• Certification needs (ISO 9001, PED AD 2000)

Grade Selection Guide

Application	Recommended Grade
Standard seawater service	F51/2205/S31803
High-chloride environments	F53/2507/S32750
Extreme corrosion conditions	F55/S32760
High-pressure systems	F51 or F53 depending on temperature
Cryogenic service	Consult with materials engineers
