Technical Specifications
| Parameter | Specification |
| Size | 1/2″ – 24″ (DN15 – DN600) |
| Type | American Standard Socket Weld Flange (SW) |
| Pressure Class | Class 150/300/600 |
| Material | A182 F304/F316L/F321/F904L/Duplex F51/F53/Ni600/Ni200 |
| Sealing Face | RF |
| Standard | ASME B16.5 |

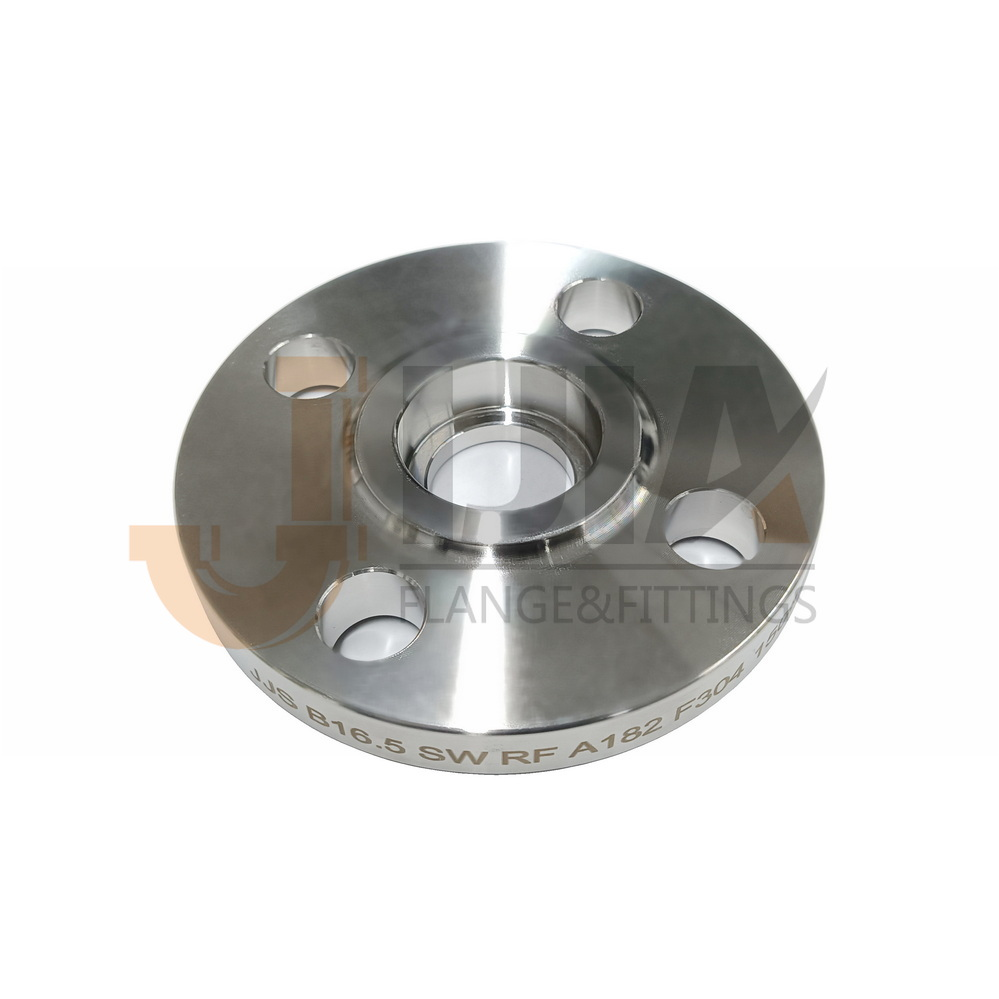

Product Description
The American Standard Socket Weld Flange features a socket weld connection design that simplifies installation with its straightforward structure. Particularly suitable for low and medium pressure piping systems, it performs excellently in water treatment, construction, and general industrial applications, making it an ideal choice for cost-effective piping connections.
Key Advantages
✔ Easy Installation – Socket weld design eliminates complex welding or bolting, significantly streamlining the installation process
✔ Cost-effective – Reduces material and labor costs compared to other connection methods
✔ Reliable Standards – Fully compliant with ASME B16.5 standards to ensure connection quality and reliability
